Glue Free Paper Straw Making Machine
Glue Free Paper Straw Making Machine
HS-XGJ

Glue Free Paper Straw Making Machine

Product Introduction:

HS-XGJ full servo non-glue paper straw making machine is our latest research and development of new products. The machine integrates automatic paper connection, forming, cutting and collecting,and adopts a CNC multi cutter system to directly produce finished paper straws.

  • Raw Material: Pure Wood Pulp Paper
  • Production speed: 40-100 meters/min
GET FREE QUOTE >>
Download >>
certification:
Application
Paper Straw
Paper Straw
Paper Straw
Paper Straw
Paper Straw
Paper Straw
Paper Straw
Paper Straw
Description

HS-XGJ full servo non-glue paper straw making machine is our latest research and development of new products. The machine integrates automatic paper connection, forming, cutting and collecting,and adopts a CNC multi cutter system to directly produce finished paper straws. The paper straw produced by the machine can withstand high temperature of 100 degrees (normal one is 70 degrees), but also can be degraded without pollution to the environment.

The Glue-Free Paper Straw Making Machine is an innovative and eco-friendly solution designed for producing 100% biodegradable paper straws without using any chemical adhesives. It utilizes a precision mechanical rolling process that bonds multiple layers of paper through high pressure and heat (where applicable), creating a strong, water-resistant straw. This machine meets the growing global demand for sustainable packaging by eliminating glue-related contamination and producing fully recyclable straws.

  • Save space and time.
  • The machine has sterilization function.
  • Have no problems caused by weather and glue.
  • The paper straws can withstand in high temperature and be degradable.
  • The product loss rate is greatly reduced.
  • The hardness increases with the same thickness raw materials.
  • The whole machine adopts servo motor.
  • It is suitable for double-use models with glue and no glue

This machine is ideal for manufacturing:

  • Eco-Conscious Food Service: Straws for restaurants, cafes, and juice bars aiming for zero-waste packaging.

  • Organic & Health Brands: Straws for organic products where chemical-free production is a key selling point.

  • Standard Drinking Straws: Producing common-size straws for sodas and cold drinks.

  • Compostable Straws: Working with specialized compostable paper to produce certified compostable straws.

Main Technology Parameter
Model HS-XGJ
Raw Material Pure Wood Pulp Paper
Paper Layers 3 layers - 4 layers
Paper Thickness 120g/m²,120g/m², 120g/m², 60g/m²
(from inside to outside)
Tube Thickness 0.3 - 2mm
Running Speed 40 - 100meters/min
Tube Size 4.5 - 12mm
Cutting System servo motors, 8 set knives
Cutting Length 80-1050mm
Power Source 380V 50Hz
Operation Person 1-2person
Power Source 380V 50Hz
Operation Person 1-2person
Production Size
Paper Roll Bracket 1600*2000*1100mm
Main Part 2000*1700*900mm
Collection Part 1900*2000*1600mm
Weight 1400kg
Machine Details

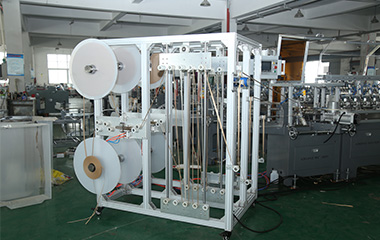

Paper Rack
Paper Rack

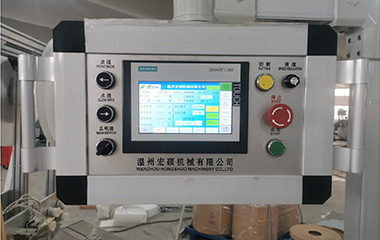

PLC
PLC

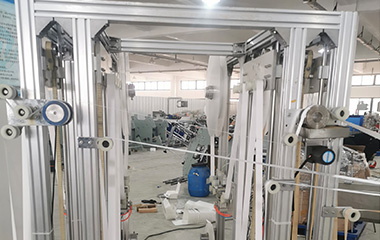

Cutter
Cutter

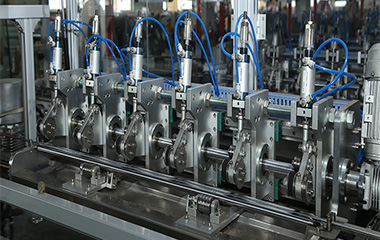

Collect
Collect

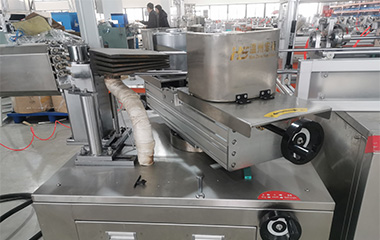

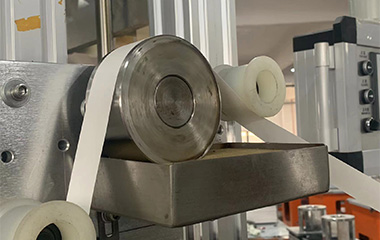

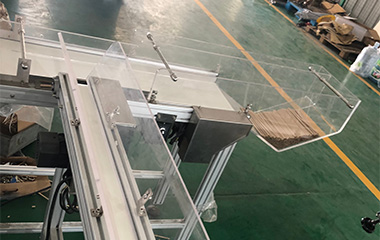

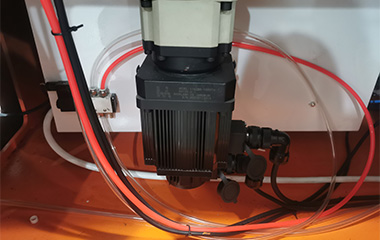

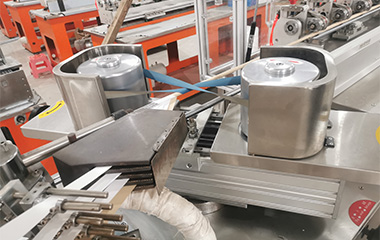

Machine Details
Machine Details
Machine Details
Machine Details
Machine Details
Machine Details
Machine Details
Machine Details
Machine Details
Machine Details
Machine Details
Machine Details
Electrical & Pneumatic Parts List
Item Brand
Main Motor Huichuan
Inverter Huichuan
PLC Huichuan
Touch Panel Huichuan
Servo Motor Huichuan
Bearing HRB
Electronic components Omron
Pneumatic parts  Airtag
After-sales Service
We have established a comprehensive after-sales service system to give you peace of mind:
  • Free one-year warranty on the whole machine.
  • 24/7 technical support.
  • We help customers design special box types using their paper materials.
  • Original equipment manufacturer parts supply, fast spare parts supply system
